SR-G10
Shengrui
Product Information

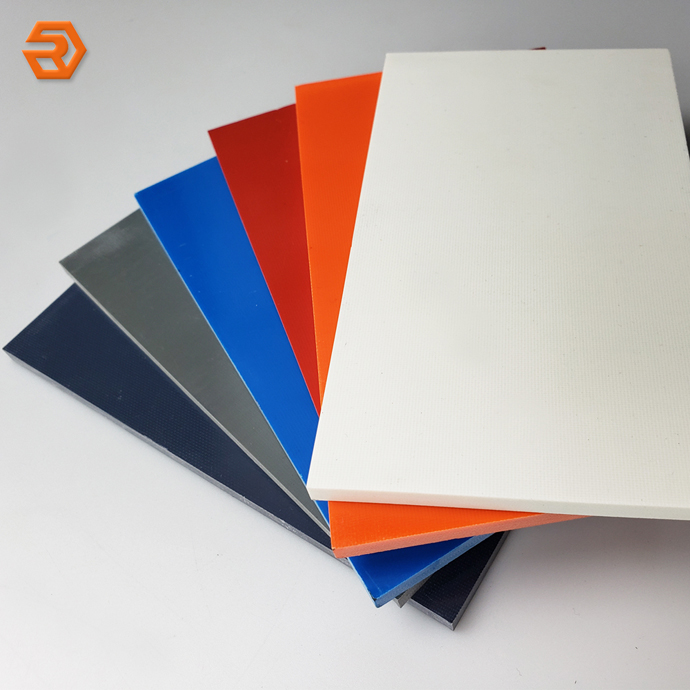

G10 material is a composite material made of glass cloth and epoxy resin. It was developed as an aircraft material when it was invented, it can withstand great strength. G-10 is not permeable with water and liquid, and it has the characteristics of insulation, anti-acid and alkali, and the weight is light.
A continuous woven glass fabric laminated with an epoxy resin. This grade is extremely high in mechanical strength, has low water absorption and dissipation factors and has superior electrical characteristics, which are exhibited over a wide range of temperatures and humidity.
Technical Data:
| Property | Unit | Typical Value | |
| General Properties | Density | g/cm3 | 1.85-1.95 |
| Water Absorption | % | <0.25 | |
| Electrical Properties | IR (24hrs Water Immersed) | G Ω | 17000 |
| IR (Dry) | G Ω | 17000 | |
| Electric Strength (Flat Rapid) | MV/m | 15 | |
| Breakdown Voltage (Edge Step by Step) | kV | ≥35 | |
| Relative Permittivity @ 1 MHz | - | 5.2 | |
| Dissipation Factor @ 1 MHz | - | 0.025 | |
| Tracking Index | V | 210 | |
| Mechanical Properties | Flexural Strength | MPa | >350 |
| Tensile Strength | MPa | >320 | |
| Impact (Notched CHARPY) | kJ/m2 | ≥33 | |
| Thermal Properties | Thermal Rating Continuous | °C | 120 |
| Thermal Rating Intermittent | °C | 130 |
Application
Grade epoxy fiberglass G-10 material is used for terminal boards, water sports equipment, electrical appliance, knife handles, pistol grips, sleeves, structural components, and parts where the strength to size ratio is critical.
Specification
1.Dimension:Standard:36''×48'', 40''×40'', 40''×48'', 48''×80'', 48''×96''.Or customized.
2.Thickness:0.5mm~200mm.
3.MOQ:300kg.
FAQ
1. Q: Are you factory?
A: Yes, We are factory.
2. Q: How about the delivery time?
A: Depends on order quantity.
3. Q: Can I get free sample for check?
A: Sample can be provided for free if we can burden the express charge.
4. Q: Can you give me a discount price?
A: More quantity, more discount you can get.
